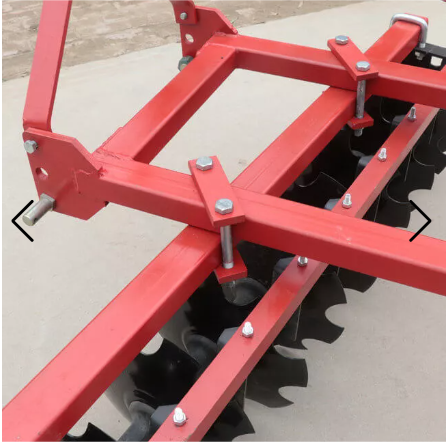

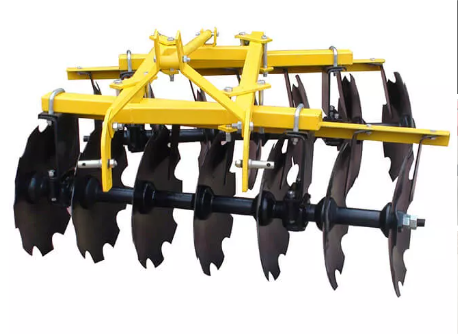

Disc light harrow
The disc light harrow is mainly used for soil surface work, breaking the surface compaction, cutting the straw back to the field, breaking the soil after ploughing, leveling and preserving the soil moisture and other work.
The front and rear notched rake is good for breaking soil and shredding straw.
High quality 65Mn spring steel rake, Rockwell hardness: 40-44.
Three-point suspension for easy linking and transportation.
| 型号 Model | 1BQX-1.1 | 1BQX-1.3 | 1BQX-1.5 | 1BQX-1.7 | 1BQX-1.9 | 1BQX-2.3 |
| 耕幅 Width of cut (mm) | 1100 | 1300 | 1500 | 1700 | 1900 | 2300 |
| 耕深 Depth of cut (mm) | 120-140 | |||||
| 耙片数量 Q’ty of disc | 12 | 14 | 16 | 18 | 20 | 24 |
| 整机重量 Weight (kg) | 200 | 220 | 240 | 260 | 310 | 360 |
| 配套马力 Tractor power (hp) | 15-25 | 20-35 | 30-50 | 40-60 | 50-60 | 50-70 |
| 挂接方式 Mounted cat | I类三点悬Cat l | II类悬挂 Cat ll | ||||
